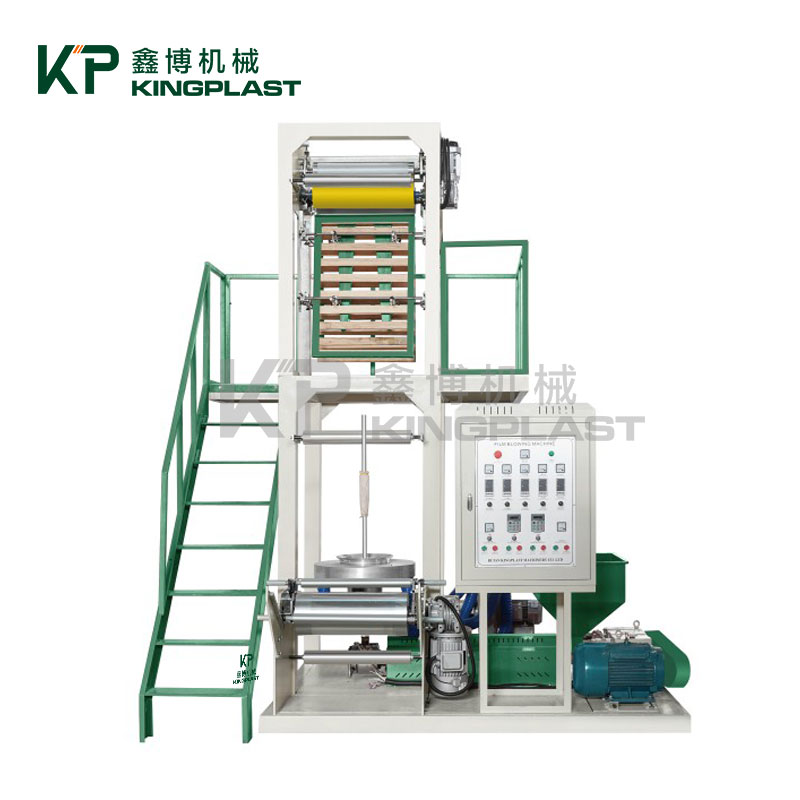

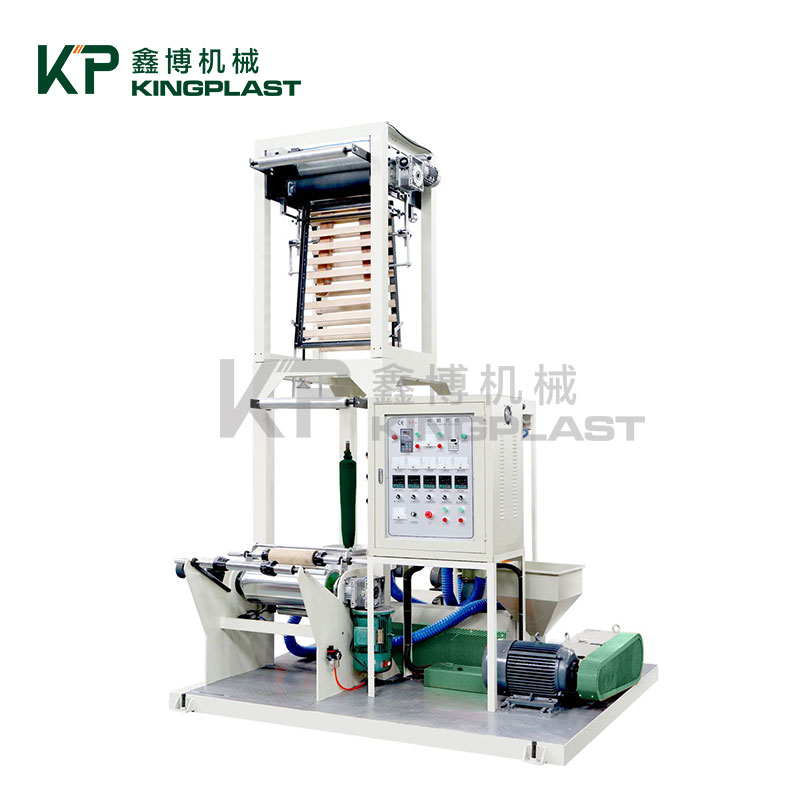

Mini Film Blowing Machine

KINGPLAST as a professional high quality Mini Film Blowing Machine manufacturer, you can rest assured to buy Mini Film Blowing Machine from our factory and we will offer you the best after-sale service and timely delivery.

Optional Equipment:

1. Auto-loader
2. Corona treater
3. Air compressor
4.Air shaft

Ruian Doy Machinery Co.,ltd as a factory moving forward with the needs of customers ,our mini film blowing machine design for customer who have limited of factory space .The mini film blowing machine kingplast made also be all-in-one machine ,when receive the machine no need install it ,just connect with power source line can work it .

Doy as a manufacturer is dedicated to building a reputation worth trusting. We prioritize the highest standards of our machines quality, reliability, and customer satisfaction in everything we do. Doy always commitment to Excellence,we are driven by a relentless pursuit of excellence in manufacturing any model and design relevant plastic machines. From the initial design stage to the final production, we ensure that every aspect of our products meets or exceeds industry standards.MINI film blowing machine is a new design model ,and feedback good from our customer ,but we never stop here.

Doy MINI film blowing machine parameter：

Firstly, KINGPLAST all-in-one MINI FILM BLOWING MACHINE machine helps reduce the overall footprint of the equipment.

Secondly, KINGPLAST all-in-one MINI FILM BLOWING MACHINE provides enhanced convenience in operation.

Moreover, KINGPLAST all-in-one MINI FILM BLOWING MACHINE is particularly friendly to novice customers. Its integrated design simplifies the learning process

Additionally, KINGPLAST all-in-one MINI FILM BLOWING MACHINE can serve as a laboratory testing machine. Depending on the specific model and features, it may include functionalities like analyzing samples, conducting experiments, or measuring various parameters. This versatility makes it suitable for scientific research, educational institutions.

Technical Parameters:

Model	KP-NM45	KP-NM50
Screw diameter(mm)	ф45	ф50
Max.folding width of film (mm)	100-500	100-600
Single-side thickness of film(mm)	0.01-0.10	0.01-0.10
Max.output (kg/hr)	30-40	40-50
Screw ratio L/D	30:1	30:1
Main motor power(kw)	11	15
Gear box	133#	146#
Heating Power(kw)	20	25
Overall diameter(L*W*H)(mm)	2300*1700*2500	2300*1800*2500
Weight(kg)	1500	1600

Mchine Detail:
